Installing My Solar
Domestic Hot Water Heating System

Click below to jump to specific pages              Bookmark and Share
HOME Receiving

A "dashboard" in the kitchen

August 22, 2006

Kitchen sing with dashboard unit aboveDashboard showing 116.9F collector temp and 91.4F storage tempI have been so obsessed with documenting the system performance that my wife has started teasing me about my "affair" with the water heater.  To which I reply "Yeah, once you've had a water heater baby, you never go back.  They're hot!".

But seriously, when I tire of logging data I will need a conveniently located basic system monitor, or a "dashboard" if you will.  So I put a dual display up next to the kitchen sink which is right above the water heater in the basement.  This unit displays the collector temperature (from the pipe as it enters the Solar Wand just above the tank) and the temperature at the top of the tank.  There are 2 lights, a green one indicates the pump circulation, and a flashing red one that warns of low fluid in the overflow reservoir above the collectors.

August 2009 update:
I have found that the low fluid warning has activated about every 14 months or so.  It is great to have this warning in a highly visible location rather than hidden in the basement utility closet (where I have a duplicate light).  I checked the tank each time the warning came on and it was about 1/2 full and I added 2-3 quarts of 50% glycol solution.  I am able to simply reach out the bedroom window to fill the tank - a nice feature of a wall mounted system.

December 2010 update:
I added real-time web monitoring using an ioBridge web monitor device.  See the LIVE STATS page for current temperatures.

Schematic of dashboard circuitA note to anyone with electronics experience.  The displays are digital voltmeters that are connected to LM34CZ temperature to voltage sensors.  The sensors produce a signal with 1mV/degree F.  So .85 Volts represents 85F.  Neat!  Check the page 7 of the data sheet LM34CZ to learn how to attach it to a long inductive wire (I used microphone cable).

Click the image at left to see a schematic for the whole dashboard.
I tucked the collector sensor under a piece of insulation wrapped around the tube that enters the Solar Wand, and the tank sensor I poked deep under the tank insulation at the top of the tank.  All the wires connect to a  terminal strip on the back wall.  The sensors and meters are powered by a wall transformer that provides 12 Volts at 100mA.

At some point in the future I might even build a graphical display that shows the readings for the last 24 hours.

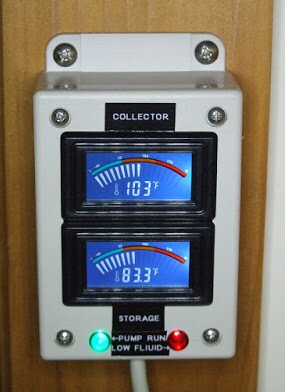

June 2016 update:
I updated my dashboard with more contemporary styled displays that I found on the web for under five dollars each.
Click here to read my blog post about this updated display.
